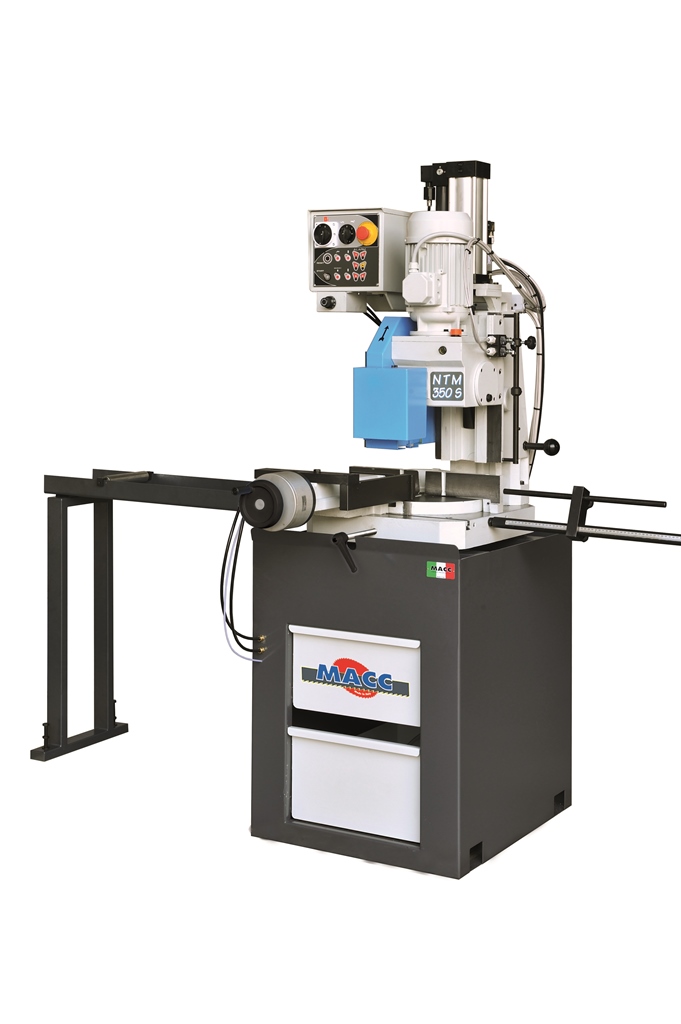

NTM 350 S

Description

TECHNICAL DATA AND STANDARD ACCESSORIES

  • Movable head 45° right and 60° left
  • Head rotation stops 45° – 0° – 45° – 60°
  • Vice complete with anti-burr device
  • Motor pump for blade lubrification
  • Shave breaker to keep the blade cleaned
  • Adjustable stops for head vertical stroke
  • 1 m long bar stop
  • 1 m long bar support
  • Service tools
  • Instruction manual and exploded view of spare parts list
  • Steel pedestal
  • Operation
    Cycle start is obtained by pressing the relevant double start button. The machine performs the following operations during the cutting cycle:

    1. vice closing and activation of blade motor
    2. cutting head downstroke
    3. blade motor stop and return of head to initial position
    4. vice opening.
  • Overall dimensions: 2640 mm x 1200 mm x 2000 mm

ACCESSORIES ON REQUEST

  • Electric motor 1,5 – 2,2 kW / 18 – 36 rpm
  • Bar support 2 – 4 – 6 meters long
